Have Limited Wall Space?. Then the 200 Series Acoustic Baffle may be the right solution for you. The 200 series Baffle is a General All-Around, All-Purpose Acoustic Product that hangs from the ceiling.
Perfect for: Open Floor Plans or a Large Expanse of Space. Common applications for these Acoustic Baffles include;
Open Plan Offices and Restaurants, Meeting and Dining Halls, Sports Complexes and Gymnasiums.
Have Limited Wall Space?. Then the 200 Series Acoustic Baffle may be the right solution for you. The 200 series Baffle is a General All-Around, All-Purpose Acoustic Product that hangs from the ceiling
Perfect for: Open Floor Plans or a Large Expanse of Space. Common applications for these Acoustic Baffles include; Open Plan Offices and Restaurants, Meeting and Dining Halls, Sports Complexes and Gymnasiums.
Here is some Technical Info you probably don’t want to read, but should know.
Size Availability: Up to 3 ft. x 6 ft., Large format panels are available. See 250 Series
Thickness: 2 inch
Tolerance: +/- 1/4 inch
Core: 6 lb. Acoustical Glass Mineral Wool
Covering: Acoustic Fabric
Edge Detail: Resin Hardened
Edge Profile: Square
Mounting: Eye Hooks (included) and Chain or Wire
General Application: Ceiling Hung
Mounting Surfaces: All Surfaces including Drywall, Brick & Concrete
Flammability: Class A™ – Does not exceed 25 Flame Spread, 50 Smoke Developed when tested in accordance with ASTM E84, UL 723 and NFPA 255.
Indoor Air Quality: Certified as a low emitting product by the GREENGUARD Environmental Institute to both the GREENGUARD Certification Program and the more stringent GREENGUARD Children and Schools standard.
Our Acoustical Glass Mineral Wool is made with 50% Recycled Post-Consumer materials. In other words, the same bottles you recycle every week!
The other 50% of the Acoustical Glass Mineral Wool is made from one of the most abundant renewable resources on the planet- sand.
The Binder used in the Acoustical Glass Mineral Wool reduces embodied energy by 70%, which means there is 70% less binder agent needed when compared to other glass wools and acoustic fiberglass products.
All of our Acoustic Fabrics are 100% Recycled Polyester.

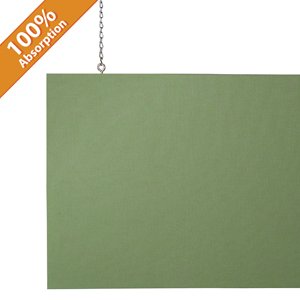

All Acoustic Baffles come with Eye Hooks. The number of eye hooks depends on the size of the Baffles. We recommend using Medium Duty Chain or Aircraft Cable to suspend the Baffles. The Baffles can hang anywhere from 2 inches to 24 inches from the ceiling surface. Spacing between Baffles can also range from 2 inches to 8 feet. The spacing between the Baffles doesn’t matter as much as spreading the Baffles out equally throughout the space. The Baffles can be hung in a straight line or staggered to add architectural appeal.
What exactly is the 200 Series Udderly Quiet™ Acoustic Baffle?
The Udderly Quiet™ 200 series Acoustic Baffle consists of two Acoustical Glass Mineral Wool panels wrapped in an Acoustic Fabric and glued back to back. The Hardware, eye hooks, are adhered between the panels. The edges of the Baffle are dipped in a resin hardener to protect the edges and add strength.
What is an Acoustic Fabric and what are my options?
An Acoustic Fabric is a fabric that is considered acoustically transparent. All Acoustic Fabrics have whats called an “Open Weave” which allows sound to travel through the fabric material and into the sound absorbent core. There are 1000’s of Acoustic Fabric Options.
Do I have to use one of your fabrics or can I provide my own?
These are your baffles! We will wrap them in whatever fabric you choose. All we ask is that you send us a 36 inch x 36 inch sample of fabric so we can test it out. We want to make sure the adhesive bonds the materials properly and also make sure the adhesive doesn’t “bleed” through the fabric and create spots on the face of the baffle.
How Big can I get the 200 Series Acoustic Baffles?
The largest we can construct a seamless 200 Series Acoustic Baffle is up to 3 ft. x 6 ft. For Larger Acoustic Baffles, check out the 250 Series.
What are the Most Economical sizes for Acoustic Panels?
2 ft. x 4 ft. is the most common and economical size for an Acoustic Baffle.
What Edge Profiles are available for the Acoustic Baffles?
All Acoustic Baffles come with a Square edge.
How Many Acoustic Baffles do I need?
We use Proprietory Acoustic Software and information from you about your space to answer this question. We use three main criteria to determine how much acoustic material is needed.First, we need to know the Dimensions (Length, Width and Height) of the Room or Space that is being treated. Typically, the larger the space the more Acoustic Baffles are needed to drop the reverb time to a preferred level.
Second, we need to know the existing Wall, Ceiling and Floor construction materials. All Construction materials like Drywall, Concrete, Brick,Metal, Wood and Carpet have industry accepted inherent Acoustic Values that affect the acoustics of the space. We know these values and use them to help determine how much Acoustic Material is needed to get the desired results.
Third, we need to know How the Space is being used or the function of the space. The use of the space greatly affects the amount of absorption materials needed to achieve the desired results. Different spaces require different reverberation times. For example, A Recording Studio requires a much lower reverb time than an Office environment. A Restaurant requires a different reveb time than a Home Theater. We know the Industry accepted reverb times for a multitude of spaces and use these times when determining the amount of acoustic coverage.
The Fastest and most thorough way to find out how many baffles you need is to call our Acoustic Team at 1-866-949-9269. Usually, you will have your answer in few short minutes. OR check out our Free Online Acoustic Analysis. Fill out the form and one of our consultants will respond! How Much do these Acoustic Baffles Cost?
The cost of this product varies greatly due to the multitude of sizes, configurations, covering options and the fact that each project is unique in terms of the amount needed to get the desired results. The Best way to get a quote is to contact our Acoustic Team at 1-866-949- 9269. For most projects you will have a quote in hand in a few minutes.
Another viable option is to complete your Free Online Acoustic Analysis. A member from our Acoustic Team will contact you via email when your quote is ready! How Long will it take to get my Acoustic Baffles?
On average, it will take about 3-4 weeks from the time you place your order to delivery. However, our lead times may vary depending on production flow. Contact a member of our Acoustic Team to find out what the current Lead Time is for Acoustic Baffles. 1-866-949-9269.Need it sooner? No worries. We can expedite orders to be delivered in 10 days!
